Product Specification

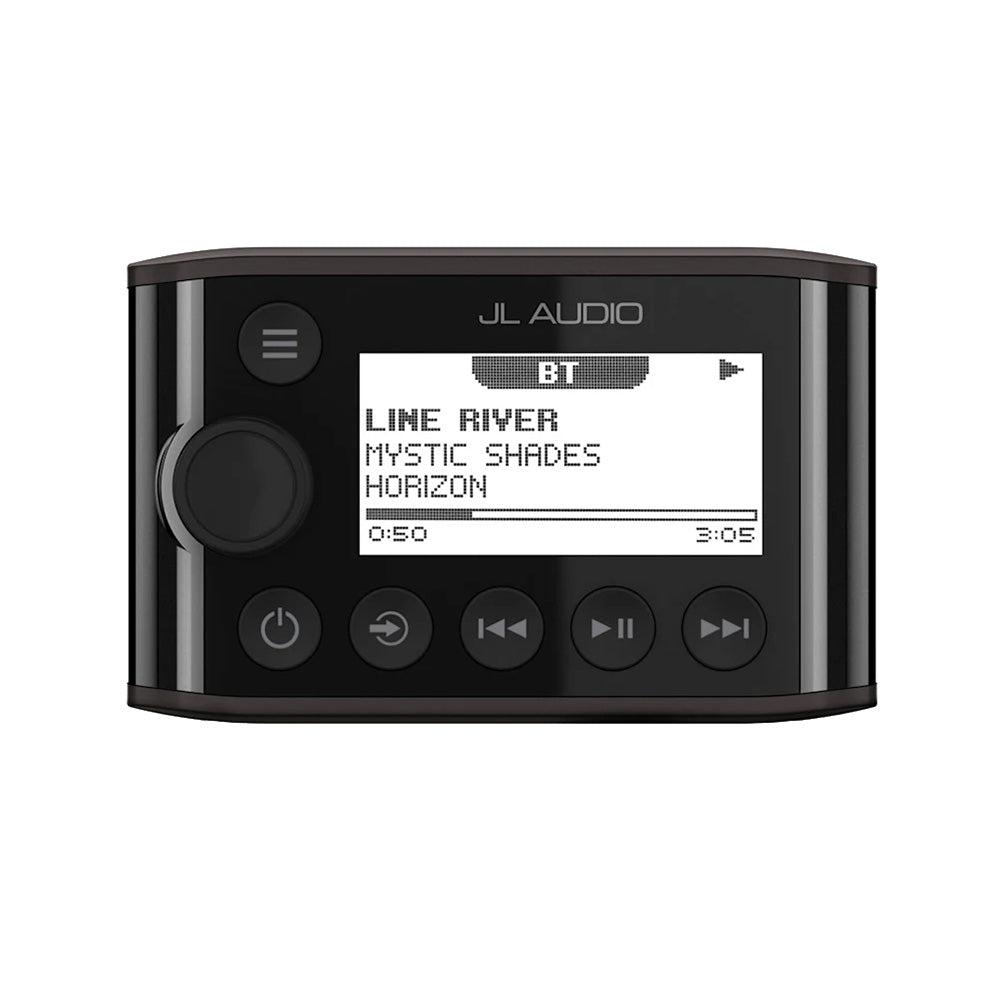

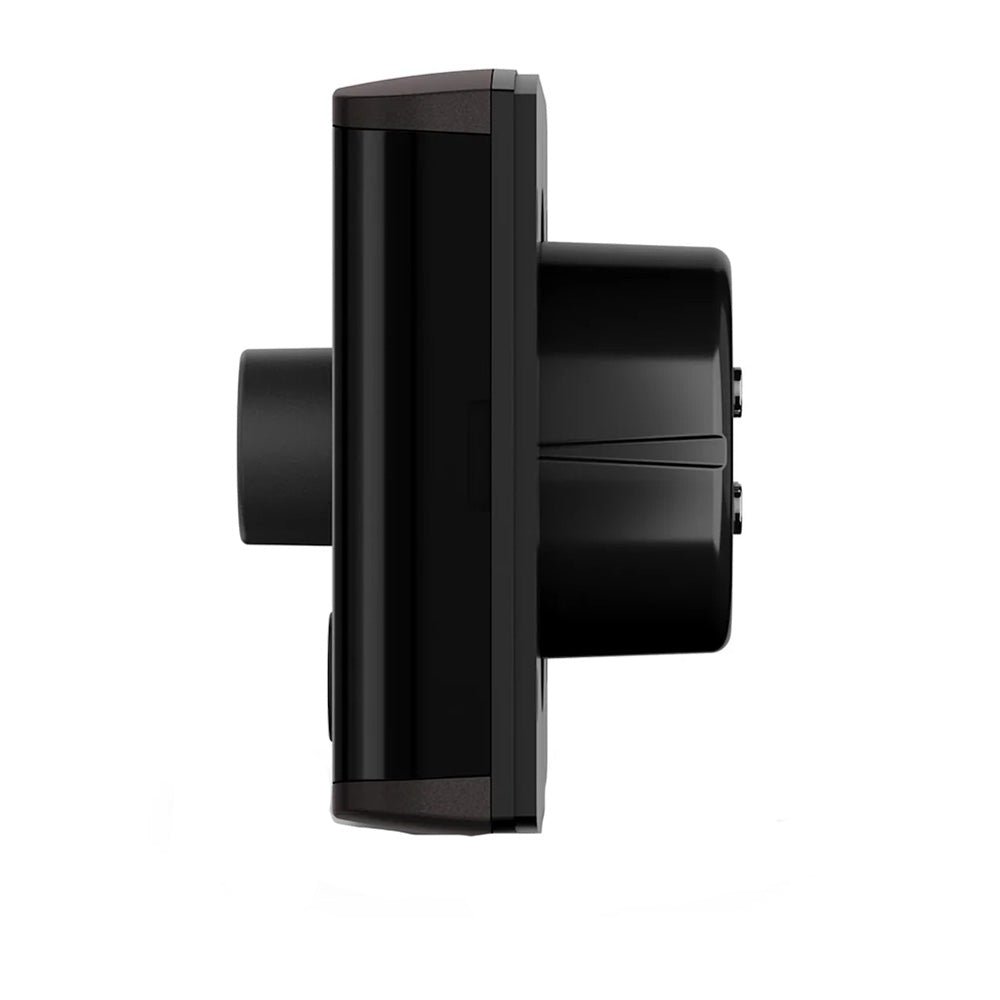

NRX-300 Wired Remote
Control your compatible marine head unit from any zone on board your boat.
Features:
- OPTICALLY BONDED LCD DISPLAY
- CONNECTS TO YOUR BOAT’S NMEA 2000® NETWORK
- CONTROL UP TO 4 AUDIO ZONES
- SINGLE WIRED CONNECTION FOR PLUG-AND-PLAY SETUP
- DISPLAY DATA FROM OTHER DEVICES ON THE SAME NMEA NETWORK
- IPX7-RATED FOR MARINE ENVIRONMENTS
General:
- Warranty: 3 years
- Physical dimensions (Height): 2.76" (70 mm)
- Physical dimensions (Width): 4.33" (110 mm)
- Physical dimensions (Depth): 1.97" (50 mm)
- Control surface dust/water rating (when properly installed): IPX7
- Operating temperature range: 32° F to 122° F (0° C to 50° C)
- Current draw (max): 110 mA
- Power Input: 10.8-16 VDC
Stereo Features:
- Display size: 2.6" (66 mm)
- Display type: optically bonded monochrome LCD
Networking & Connections:
- NMEA 2000® ports: 1
- NMEA 2000® LEN: 3 (150 mA)
In The Box:
- JL Audio NRX-300
- Mounting gasket
- Four mounting screws
- Two screw covers
- T-connector for the NMEA 2000® Network
- Documentation
Owner's Manual (pdf)
